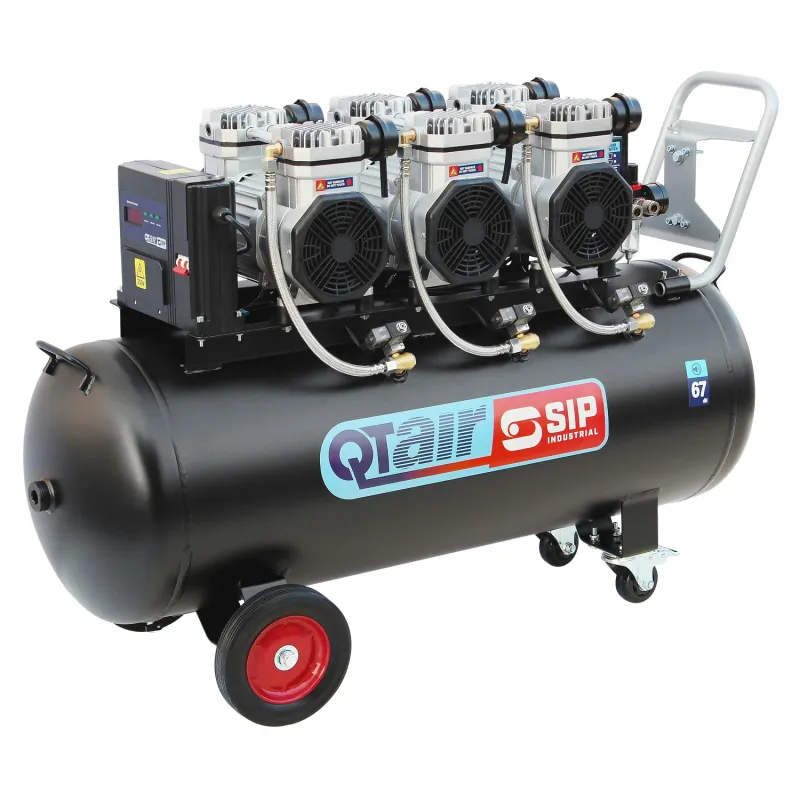

SIP QT AIR DD 4.5hp 150ltr Ultra Low Noise Oil-Free Direct Drive Compressor

LARGE SIX-CYLINDER MOTOR PUMP UNIT WITH SLOW-RUNNING 4-POLE MOTORS ACHIEVE ULTRA LOW NOISE LEVELS & SUPPORT HIGHER AIR VOLUME APPLICATIONS & OIL-FREE FOR LOW MAINTENANCE USE

• Ideal for spraying applications, pneumatic car lifts and tyre changers. Suitable for sanding and grinding applications and perfect for use with spot welders and plasma cutters.
• Slow-running 4-pole motors operate at lower speeds for longer life performance (4.5hp/3.3kW) compared to standard SIP 2-pole motor air compressors. Delivers high 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single-phase supply.
• Large motor fans improve cooling to maintain pump temperature and output performance.
• A mains supply control box with input voltage display initiates individual motor pump unit start-up at 3sec intervals. This eliminates inrush current, alleviating any start-up motor stress and premature motor wear and tear.
• Also features an electronic auto bleed system for resistance-free start-up. This releases residual delivery pipe pressure before every filling cycle, which ensures each motor reaches it's full operating speed without any additional mechanical stress.
• Fitted with 3mtr mains cable for greater work area flexibility and a 230v/16A plug.
• Operates at an ultra low 67dB for lower noise levels compared to older SIP compressor technology. Ideal for work areas where noise level is a consideration.
• Oil-free operation for low maintenance use and reduced operating costs. This prevents oil carry-through to air tools and equipment, maximising longevity.

150LTR RECEIVER TANK SAFELY STORES COMPRESSED AIR READY FOR AIR TOOLS & INFLATION TASKS

• Maintains a consistent air supply of up to 8bar pressure.

TANK & WORKING PRESSURE GAUGES WITH REGULATOR OPTIMISE AIR DELIVERY

• Provides an accurate display of current pressures for enhanced user operation.

TWIN QUICK-RELEASE AIR CONNECTORS FOR GREATER APPLICATION VERSATILITY

• The adjustable regulator (0-8bar) optimises air requirements to both quick-release connectors.
• Also fitted with a quick-release air receiver condensate drain valve.

SOLID WHEEL KIT WITH FRONT SWIVEL CASTORS & U-HANDLE FOR OUTSTANDING MOBILITY AROUND THE WORK AREA

• Allows full movement in a variety of work area settings for added flexibility.
• Supplied U-handle includes bracket and fixings for mounting a separate SIP Air Hose Reel for added versatility.

SUPPLIED U-HANDLE INCLUDES BRACKET & FIXINGS FOR MOUNTING A SEPARATE SIP AIR HOSE REEL

• Compatible air hose reels include:
  • 07977: SIP Air Hose Reel R15 (15mtr recoiling hose in heavy-duty metal casing with swivel bracket).
  • 07974: SIP Air Hose Reel 15 (15mtr recoiling hose in heavy-duty plastic casing with swivel bracket).
  • 07972: SIP Air Hose Reel 12 (12mtr recoiling hose in heavy-duty plastic casing with swivel bracket).

Technical Information
